Butt-Welding Machine for PE Pipes 630mm to 315mm

fitting_and_fabrication_polyworkshop_630i

Fabrication630

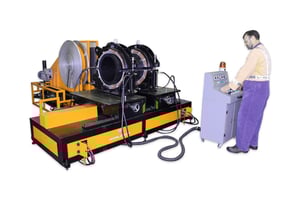

Hydraulically operated workshop machine for the butt-welding of pipes and fittings in PE, PP and other thermoplastic materials. Optional pivoting clamps allow for the fabrication of segmented bends of different radii from 315 to 630mm OD, 315 to 630mm OD" 90 degree equal tees and crosses, and 45 and 60 degree equal branch tees 315 to 630mm. Touch-screen with CNC control of welding cycle and 10,000+ weld data logging is standard.

GET A QUOTE

315mm to 630mm

12.4" to 24.8"

WHAT'S INSIDE

GENERAL INCLUSIONS

→ Welding range 315 to 630mm to SDR 9
→ Hydraulic open/close and locking of main bend clamps. Optional for Tee clamps. Basic model is available without this feature.
→ CNC operation with touch-screen and integated 5000 weld data logger is standard
→ Please note technical specifications of worldpoly machines may change without notice

HYDRAULICS

→ German hydraulic seals.
→ Total cylinder area 19.63cm²

ELECTRICS

→ 400 volt 3 phase 50 Hz (32.7 kw 52.6 A). Optional 60 Hz also available.

OPTIONS

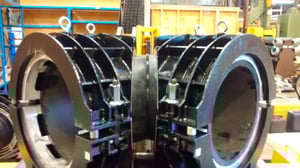

→ Bend clamps allow production of segmented bends diameter 315, 355, 400, 450, 500, 560 & 630mm OD.
→ Tee clamps produce 90 degree equal tees and crosses diameter 315, 355, 400, 450, 500, 560 and 630mm OD.
→ Wye / branch tee clamps produce true-Y, 45 and 60 degree equal Y-branch tees 315, 355, 400, 450, 500, 560 and 630mm OD.

WARRANTY

→ Genuine 24 month international warranty.
