Field1200

Hydraulically operated butt-welding machine, suitable for PE and PP pipes and fittings from 630 - 1200mm/24.8 - 47.2"

Website_photo_lo-res_1200

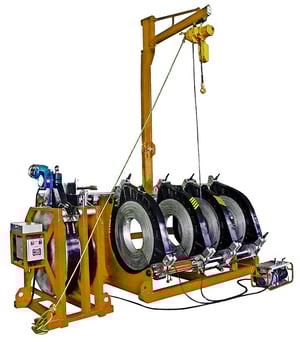

FIELD1200

A hydraulically operated butt-welding machine, suitable for PE and PP pipes and fittings from 630 to 1200mm OD, alternatively 24 to 48". Available to weld according to ISO/DVS/POP003 SLP & DLP low pressure.

The use of virgin Aluminium castings and German hydraulic seals allows for lower weight without compromising strength and performance. Welding can be carried out between clamps 3 & 4 for tees, bends and manifold work. Can be integrated with optional data logger and overhead electric crane.

GET A QUOTE
630mm to 1200mm
24.8" to 47.2"

WHAT'S INSIDE

GENERAL INCLUSIONS
  • → Welding range 630 to 1200mm: to SDR 11 (PN16). 630 to 800mm: to SDR 9
  • → Main frame includes 4 light weight alloy main clamps of 1200mm diameter.
  • → Aluminium PTFE coated heating plate with electronic temperature control. Heating plate automatically releases from pipe ends after heating.
  • → Electrically operated facing tool for correct preparation of pipe ends.
  • → Stand for heating plate and facing tool.
  • → Electrohydraulic pump with controls, accumulator and quick release hoses. Includes countdown timers for heating and cooling phases.
  • → Tool box including tools, bolts etc.
  • → Weight 4,522kg (including crane and stub device)
  • → Please note technical specifications of Weldpoly machines may change without notice.
OPTIONS
  • → Layer clamps: 1200x1100, 1100x1000, 1000x900, 900x800, 800x710, 710x630.
  • → Machine can be supplied with any combination of liner diameters.
  • → Optional 1,000kg crane assembly, wheeled trolley and aluminium or steel stub end device for welding end fittings.
ELECTRICS
  • → Wired ready to accept Weldpoly or other data logger.
  • → 400 volt 50/60 Hz 3 phase (29 kw, 47.3 A). 480 volt 3 phase 60 Hz also available
  • → Minimum generator required: 400 volt 50 hz 3 phase, 32 KVA. Provide full machine details to generator supplier before purchase.
HYDRAULICS
  • → Welding force maximum 1200mm OD SDR 11, according to DVS 2207-1, ISO 21307 and POP003 low-pressure specifications.
  • → Total cylinder area: 50.6cm², maximum pump pressure 180 bar
WARRANTY
  • → Genuine 2 year international warranty.
